Productions Equipement
MOLD WORKSHOP
| Equipment name | Quantity |
|---|---|
| CNC | 08 |
| Wire cutting | 03 |
| EDM | 12 |
| Milling machine | 09 |
| Drilling machine | 02 |
| Grinding machin | 07 |

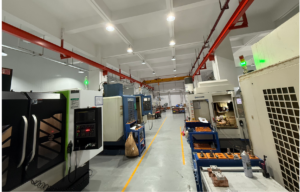

Tooling CNC WORKSHOP
Capacity: 30 tools per month.
Mold type: Over-mold, 2K mold, multi-cavity mold,
cold runner, hot runner.
Mold tonnage: Suitable for 50-500 tonnes.
Japanees Precision machines-Wire cutting machine
Wire cutting qty: 3 sets
Brand：Sadic
Working Station Parameters
| Description | Parameters |
|---|---|
| X direction | 360mm |
| Y diretion | 250mm |
| Z diretion | 220mm |
| U, V stroke | 80*80mm |
| Ta p e r a n g l e | +/-15degree |
| Max part size | 550mm*380mm*:220mm |
| Max. part weight | 400kg |
Wire cutting WORKSHOP
Max component: 550mm*380mm*:220mm
Max wight: 400kg
Main working station: 1277mm*: 2246mm*2110mm
High Speed 5axis CNC
Quantity: 18 sets
Brand：Beijing JD
Working Station Parameters 2
| Description | Parameters |
|---|---|
| X direction | 450mm |
| Y diretion | 680mm |
| Z diretion | 400mm |
| A asix | -120°～90° |
| C Asix | 360 |
| Speed | Up to 28000 |
| Station Size | Φ400mm |
High Precision CNC
High speed Machining device 4 sets
Brand: Brother, Faunc
Machine capacity
| Description | Parameters |
|---|---|
| X direction | 450mm |
| Y diretion | 680mm |
| Z diretion | 400mm |
| A asix | -120°～90° |
| C Asix | 360 |
| Speed | Up to 28000 |
| Station Size | Φ400mm |
High Precision CNC
High speed Machining device 4 sets
Brand: Brother, JD-GRT100
Machine capacity
| Description | Parameters |
|---|---|
| X direction | 200mm |
| Y diretion | 440mm |
| Z diretion | 305mm |
| A asix | -120°～30° |
| C Asix | 360 |
| Speed | Up to 16000 |
| Station Size | Φ140mm |
Japanese high precision
machines
Quantity: 20sets
Brand：Japan STAR
Working Station Parameters
| Description | Parameters |
|---|---|
| Max diameter | ø 16mm / ø 20mm |
| Main Axis stroke | 205mm |
| Max cutting surface | M10 × P1.5 |
| Max. drilling | ø 12mm |
| Rotary tools | 4-10blades |
| Fast feed Speed | 35m/min |
| Station Size | 2070 × 1177 × 1760mm |

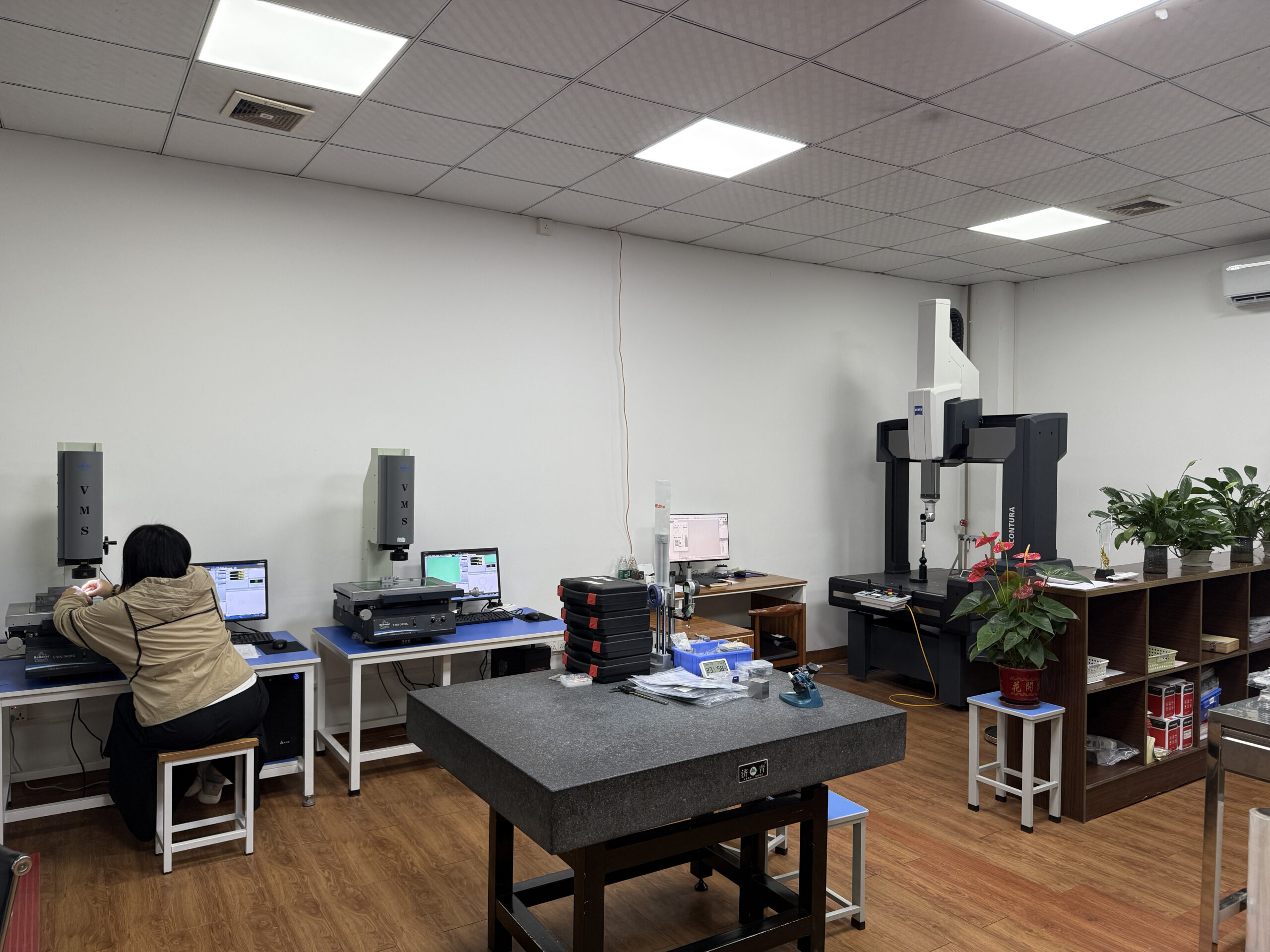

MEASUREMENT LAB
The QA Department strictly apply ISO9001 and ISO14000
standards implementation. The lab is well equipped with
advanced testing equipment.
Injection molding machine
6 sets (50-300T)
High temperature resin injection machines
2sets Brand: HAITIAN

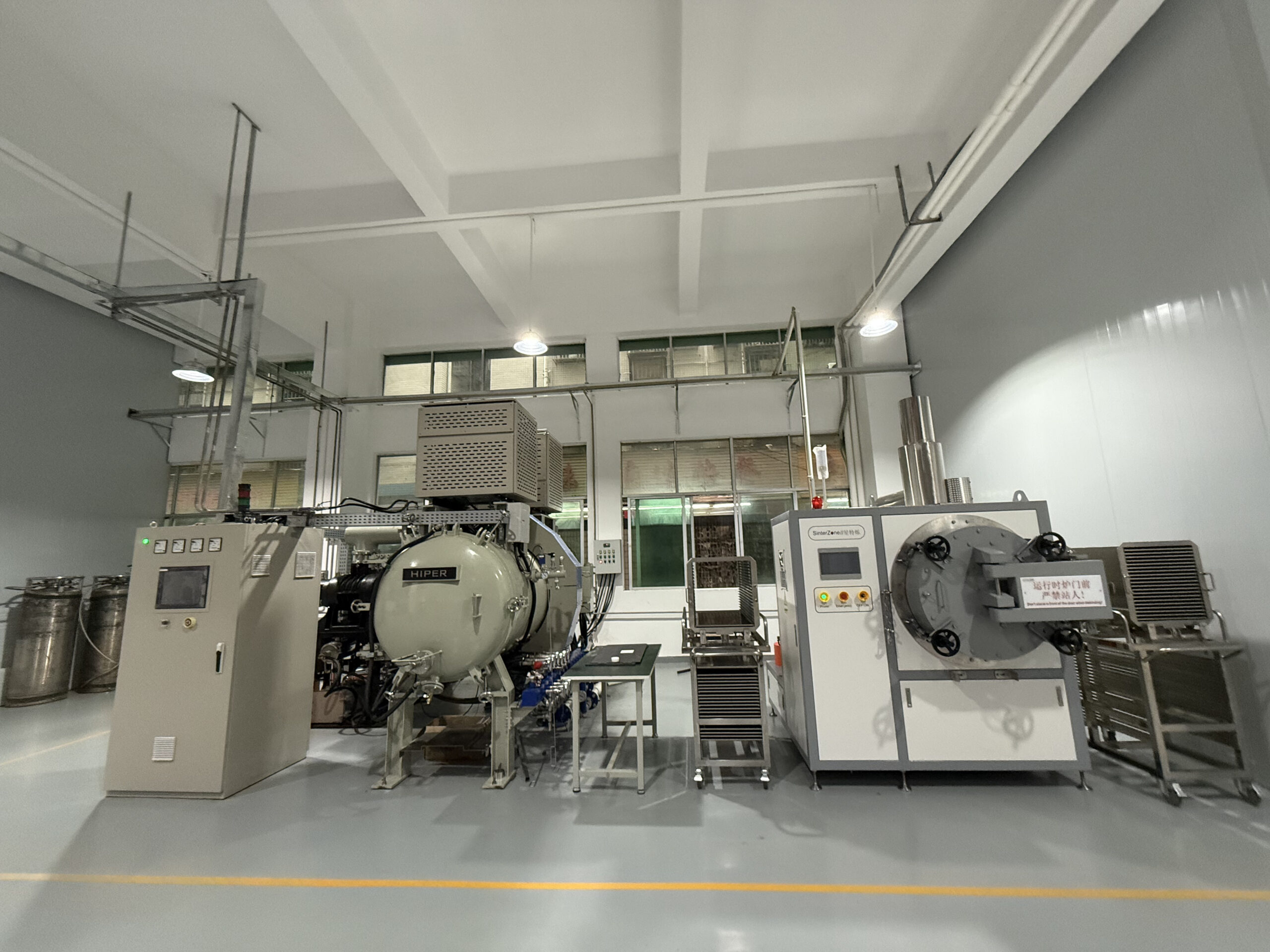

MIM Injection WORKSHOP
- In 2024, we conducted market research, customer development, and demand analysis, along with technical feasibility assessments.
- In June 2025, we officially introduced the process with one MIM (Metal Injection Molding) powder metallurgy injection production line, which is currently in the testing phase. It is expected to officially accept orders by February 2026.
- This prepares us for cost reduction in needle-holding and bipolar instruments by 2026 through early strategic planning.
